Product Details:
Payment & Shipping Terms:
|
| Equipment: | 3150T Open Die Hydropress | Melting Process: | LF+EF+VD |
|---|---|---|---|
| Production Process: | Forging+heat Treatment+rough Machining | Forging Ratio: | ≥5 |
| Heat Treatment: | N+T Q+T | Max Weight: | 80T |
| High Light: | forging stainless steel,super steel forgings |
||

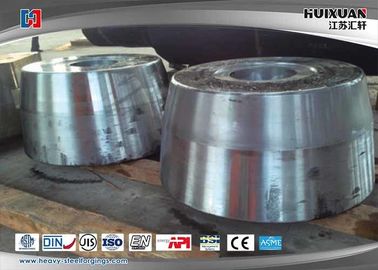

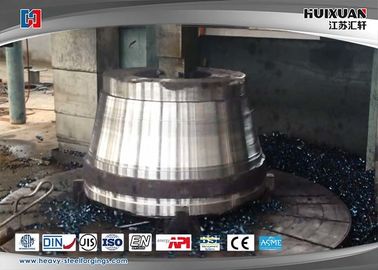

Conehead forgings,alloy steel conehead,carbon steel conehead forgings,cone forgings
Product reference:
| Material | 16MnD,P91,Q235 |
| Equipment | 3150T Open die hydropress |
|
Application |
Conehead is the components of bolt ball steel truss,welded to the end of steel pipe,the screw of high strength bolt goes through the bottom hole into bolt ball,nut is in conehead,the same function with “seal board”,when steel pipe diameter is small to use “seal board”,when steel pipe diameter is big to use”conehead that can avoid from collide with pipe steel. |
| Melting process | LF+EF+VD |
|
Production process |
Forging+heat treatment+rough machining |
| Forging ratio | ≥5 |
|
Applicable standard |
ASTM,ASME,DIN,JIS,ISO,BS,API,EN |
| Executive standard | JB/GB/EN/DIN/JIS/ASME/ASTM/ISO |
| Certification authority | ISO,BV,SGS, IST, UL,CTI |
| Delivery term |
Rough machining(N+T);finish machining(Q+T) |
| Test equipment |
Spectrograhp,UT device,tensile and impact test device,metalloscope,hardness test device |
| Service | Our service included the forging, process, heat treatment, finish machining, package, local logistics, customers clearance and maritime transport. We took the customer’s requirements as the principal thing, and pay attention on the products quality. |
Custom properties:
| Material elements | C | Si | Mn | P | S | Cr | Ni | Mo |
Others |
| 16MNnD | 0.13-0.20 | 0.17-0.37 | 1.20-1.60 | ≤0.030 | ≤0.030 | ≤0.30 | ≤0.30 | -- | |
| P91 | 0.08-0.12 | 0.30-0.60 | 0.20-0.50 | ≤0.02 | ≤0.01 | 8.0-9.5 | ≤0.40 | 0.85-1.05 | 0.18-0.25 |
| P91 | Nb:0.06-0.1 | Al≤0.04 | N:0.03-0.07 | ||||||
| Q235 | ≤0.17 | ≤0.35 | ≤1.40 | ≤0.035 | ≤0.035 |
|
Mechanical property |
Dia.(mm) |
TS/Rm(Mpa) |
YS/Rp0.2(Mpa) |
EL/A5(%) |
RA/Z(%) |
Type Of notch |
Impact energy |
HBW |
| 16MnD | Ø15 | 470-630 | ≥345 | ≥21 | -- | V | -20℃≥34 | ＝＝ |
| P91 | Ø15 | ≥415 | ≥20 | |||||
| Q235 | Ø15 | 375-460 | ≥215 | ≥24 |
|
Process procedure:

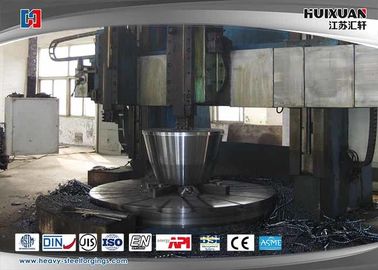

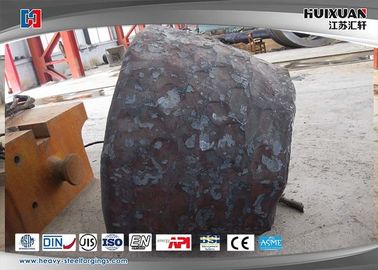

Forging process flow quality control: Raw material steel ingot into warehouse(test the chemical content) → Cutting→ Heating(Furnace temperture test) → Heat treatment after forging(Furnace temperture test) Discharge the furnace(blank inspection)→ Machining→ Inspection(UT,MT,Visal diamention, hardness)→ QT→ Inspection(UT, mechanical properties, hardness, grain size)→ Finish machining→ Inspection (dimension)→ Packing and Marking(steel stamp, mark)→ Storage Shipment
Commerce clause:
| Max weight | 80T |
| MOQ | 1PC |
| Delivery date | 20-50 days |
| Package | wooden case,pallet,iron steel frame |
| Delivery term | FOB;CIF;CFR；DDU； |
| Payment term | T/T,LC |
| Transportation |
By ocean,air |
Keywords
“cone head” or seal board and pipe steel are formed a rod piece of bolt ball truss.
Sometimes”seal board” and “conehead” are called by end socket
Note:
High-precision dimensional tolerance;Excellent mechanical properties;
Produce different dimension based on customer’s requirements;
Advanced manufacture equipments and inspection devices;
Excellent technical personality;Control the production procedure strictly;
Pay attention on the package protection;Quality full service.
