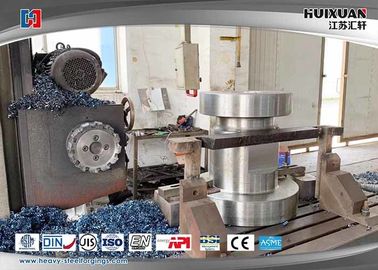

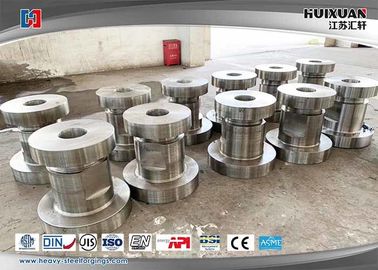

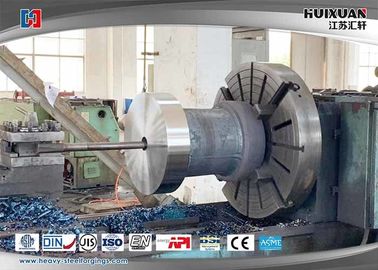

F53 F6NM 4130 35CrMo 4140 42CrMoA 42CrMo4 Forging Stainless Steel Tube Head Casing Head

F53 F6NM 4130 35CrMo 4140 42CrMoA 42CrMo4 Forging Stainless Steel Tube Head Casing Head
F53 F6NM 4130 35CrMo 4140 42CrMoA 42CrMo4 Forging Stainless Steel Tube Head Casing Head F53 F6NM 4130 35CrMo 4140 42CrMoA 42CrMo4 Forging Stainless Steel Tube Head Casing Head F53 F6NM 4130 35CrMo 4140 42CrMoA 42CrMo4 Forging Stainless Steel Tube Head Casing Head

Large Image :  F53 F6NM 4130 35CrMo 4140 42CrMoA 42CrMo4 Forging Stainless Steel Tube Head Casing Head

Product Details:

Place of Origin: JiangSu
Brand Name: HUIXUAN
Certification: ASTM,ASME,German DIN,JIS,ISO,BS,API,EN ,DIN
Model Number: 5T

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: wood pallet,steel frame
Delivery Time: 30-60 days
Payment Terms: L/C, T/T
Supply Ability: 2000-4000 Ton/Month
Detailed Product Description
Material: 4130 Equipment: 8T Hammer
Melting Process: EF+VAR Forging Ratio: ≥4
Heating Treatment: N+T Q+T Weight: 5 T
High Light:

forging stainless steel

,

super steel forgings





F53,F6NM4130 35CrMo 4140 42CrMoA 42CrMo4 Stainless Steel Forging Tube Head Casing Head

Flange,cylider head body,christmas tree



Reference:

 Material F53,F6NM 4130 35CrMo 4140 42CrMoA 42CrMo4
Equipment 8T Hammer

Application

Surface casing head,tube head is the key connection parts between casing and well head

Melting process



EF+VAR

Production process



Forging-heat treatment after forging-rough machining-QT-finish machining-packing

Forging ratio ≥4

Applicable standard



ASTM,ASME,DIN,JIS,ISO,BS,API,EN

Executive standard



JB/GB/EN/DIN/JIS/ASME/ASTM/ISO

Certification authority

ISO9001,PED (TÜV)



Delivery term

Each product is qualified,no material and machining defect,completely meet the mechanical property.

Test equipment

Spectrograph,UT,MT device,tensile and impact test machine,metalloscope,outside micrometer,bore dial indicator,hardness test machine

Service

Our service included the forging, process, heat treatment, finish machining, package, local logistics, customers clearance and maritime transport. We took the customer’s requirements as the principal thing, and pay attention on the products quality.



Customs properties:

Material elements



C



Si



Mn



P



S



Cr



Ni



Mo



Cu



V

4130 0.28-0.33 0.15-0.35 0.4-0.7 <0.025 <0.025 0.8-1.0 <0.5 0.15-0.25 /

<0.1

4140 0.38-0.43 0.15-0.35 0.75-1.00 <0.030 <0.040 0.80-1.10 <0.030 0.15-0.25 <0.030 /
42CrMo4 0.38-0.43 0.15-0.35 0.75-1.00 <0.030 <0.040 0.80-1.10 <0.030 0.15-0.25 <0.030 /
F53 ≤0.03 ≤0.80 ≤1.2 ≤0.035 ≤0.02 24-26 6-8 3-5
F6MN ≤0.05 ≤0.60 0.5-1 ≤0.03 ≤0.03 11.5-14 3.5-5.5 0.5-1



Mechanical property



Dia.(mm)



TS/Rm(Mpa)



YS/Rp0.2(Mpa)



EL/A5(%)



RA/Z(%)



Notch



Impact energy



HBW

4130 Ф10 >655 >517 >18 >35 V ≥20J(-60℃) 197-237
4140 Ф10 >1080 >930 >25 >45 V ≥25J(-60℃) <217
42CrMo4 Ф10 >1080 >930 >25 >45 V ≥25J(-60℃) <217



Commerce clause:



Max weight 5 T
MOQ 1PC
Delivery date 30-50 Days
Package Wooden case
Delivery term FOB;CIF
Payment term T/T,LC
Transportation Vehicle,ocean,air



Keywords:

Surface casing head is the key connection parts between casing and well head ,the common material is 4130,The bottom end is connected with surface casing by screw,top end is connected with well head equipment by flange or clamp.



Procedure:

Forging process flow quality control: Raw material steel ingot into warehouse(test the chemical content) → Cutting→ Heating(Furnace temperture test) → Heat treatment after forging(Furnace temperture test) Discharge the furnace(blank inspection)→ Machining→ Inspection(UT,MT,Visal diamention, hardness)→ QT→ Inspection(UT, mechanical properties, hardness, grain size)→ Finish machining→ Inspection (dimension)→ Packing and Marking(steel stamp, mark)→ Storage Shipment



Features:

  1. High-precision dimensional tolerance;
  2. Excellent mechanical properties;
  3. Produce different dimension based on customer’s requirements;
  4. Advanced manufacture equipments and inspection devices;
  5. Excellent technical personality;
  6. Control the production procedure strictly;
  7. Pay attention on the package protection;
  8. Quality full service.

F53 F6NM 4130 35CrMo 4140 42CrMoA 42CrMo4 Forging Stainless Steel Tube Head Casing Head 0F53 F6NM 4130 35CrMo 4140 42CrMoA 42CrMo4 Forging Stainless Steel Tube Head Casing Head 1
