Product Details:
Payment & Shipping Terms:
|
| Application: | SS Vessel Plate | Color: | Original |
|---|---|---|---|
| Material: | Stainless Steel | Size: | As Drawing |
| Certificate: | BV | Heat Treated: | Solution |
| High Light: | Through Type Stainless Steel Bending Plate,Oiled Stainless Steel Bending Plate,Ship Stainless Steel Bending Plate |
||

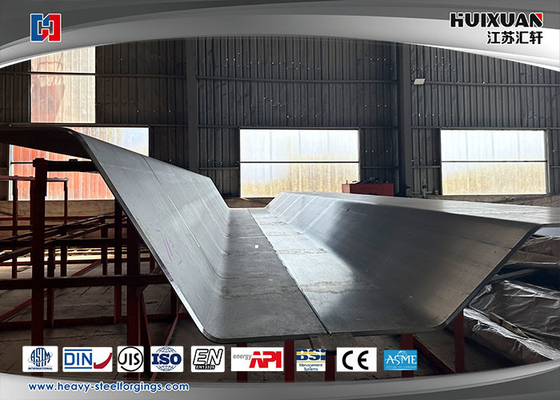

Oiled ship interior deck Chemical vessel plate,stainless steel bending plate,through type steel plate
1, Products:
Chemical vessel plate,stainless steel bending plate,through type steel plate,Double phase stainless steel plate, tisco stainless steel plate, Japan imported stainless steel plate, Nippon Steel stainless steel plate
2, Products reference:
| Material |
2205,2507,316L,304L |
|
| Max weight | 50T | |
| Application |
|
|
| Process | Hot rolled→Solution→Acid pickling→Flat→Grinding→Cutting→ Trimming → Machining→Bending | |
| Applicable standard | ASTM,ASME,DIN,JIS,ISO,BS,API,EN | |
| Executive standard | JB/GB/EN/DIN/JIS/ASME/ASTM/ISO | |
| Certification authority | ABS,DNV,BV,GL,KR,CCS,LR,NK,RINA,RS | |
| Delivery term |
Cutting,Trimming,Bending |
|
| Test equipment |
Spectrograph,ut devicve,tensile and compact test machine,metalloscope,outside micrometer,bore dial indicator,hardness test machine |
|
| Service | Our service included the rolling process, heat treatment, finish machining, package, local logistics, customers clearance and maritime transport. We took the customer’s requirements as the principal thing, and pay attention on the products quality. |
3, Custom properties:
|
|
C | Si | Mn | P | S | Ni | Cr | Mo | N |
| 2205 | ≦0.030 | ≦1.00 | ≦2.00 | ≦0.030 | ≦0.015 | 4.50~6.50 | 21.00~23.00 | 2.90~3.50 | 0.14~0.20 |
| 2507 | ≤0.030 | ≤0.80 | ≤1.20 | ≤0.035 | ≤0.02 | 6.0-8.0 | 24.0-26.0 | 3.0-5.0 | 0.24-0.32 |
| 316L | ≤0.030 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 10.00～14.00 | 16.00～18.00 | 2.00～3.00 | |
| 304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 | 9.0～12.0 | 18.0～20.0 |
|
Forging process flow quality control: Hot rolled→Solution→Acid pickling→Flat→Grinding→Cutting→ Trimming → Machining→Bending→ Inspection (dimension)→ Packing and Marking(steel stamp, mark)→ Storage Shipment
5, Commerce clause
| MOQ | 1PC |
| Delivery time | 30-60 days |
| Package | Wood pallet,steel frame |
| Delivery term | FOB;CIF;CFR；DDU； |
| Payment term | T/T,LC |
| Type of shipping |
By ocean,air |
Features:
