Product Details:
Payment & Shipping Terms:
|
Material: | 45# | Prcoess: | Forged |
---|---|---|---|
Heat Treatment: | Q+T | Package: | Wooden Case |
Highlight: | accurate steel forging,industrial forgings |

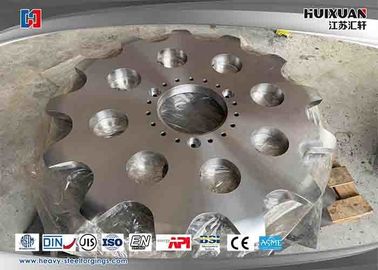

Forged chain sprocket wheel for marine engineering equipment
Products:
Chain sprockets are widely used for marine machinery for transmisson
Products reference:
Material |
45# |
Max. weight |
500kg |
Apply for |
Ship, marine engineering machinery, transmission parts |
Melting process |
EF+LF+VD |
Process technology |
Forging+heat treatment+rough machining+finish machining |
Forging ratio |
≥3.5 |
Applicable standard |
ASTM,ASME,DIN,JIS,ISO,BS,API,EN |
UT |
EN-102283-3 1998
|
Painting |
Prime painting
|
Executive standard |
JB/GB/EN/DIN/JIS/ASME/ASTM/ISO |
Certification authority |
ABS/ DNV/ BV/ GL/KR/ CCS/ LR/ NK/ RINA/ RS. |
Delivery terms |
Rough machining(N+T); finish machining(Q+T) |
Test equipment |
Spectrograph, UT device, tensile and impact test machine, metalloscope,external micrometer, bore dial indicator, hardness testing device and so on. |
Service |
Our service included the forging, process, heat treatment, finish machining, package, local logistics, customers clearance and maritime transport. We took the customer’s requirements as the principal thing, and pay attention on the products quality. |
Custom properties
Material elements |
C | Si | Mn | P | S | Cr | Ni | Mo | V |
45# | 0.42-0.50 | 0.17-0.37 | 0.50-0.80 | ≤0.035 | ≤0.035 | ≤0.25 | ≤0.25 | -- | - |
Mechainal properties |
Dia.(mm) |
TS/Rm(Mpa) |
YS/Rp0.2(Mpa) |
EL/A5(%) |
RA/Z(%) |
Type Of notch |
Impact energy |
HBW |
45# | Ø25 | ≥600 | ≥355 | ≥16 | ≥40 | V | ≥27 | ≤484-649 |
Process procedure:
Forging process flow quality control: Raw material steel ingot into warehouse(test the chemical content) → Cutting→ Heating(Furnace temperture test) → Heat treatment after forging(Furnace temperture test) Discharge the furnace(blank inspection)→ Rough Machining→ Inspection(UT,MT,Visal diamention, hardness)→ QT→ Inspection(UT, mechanical properties, hardness, grain size)→Semi finish teeth milling+drilling→Surface hardening treatment→ Hardness Inspection→ Finish machining teeth→Blasting and Painting→ Packing and Marking(steel stamp, mark)→ Storage Shipment
Commerce clause
MOQ |
20PCs |
Delivery time |
30-60 days |
Package |
Wood case, steel frame support |
Delivery terms |
FOB;CIF;CFR;DDU; |
Payment terms |
T/T,LC |
Type of shipping |
By ocean, air |
Keywords
Various of forging used for marine products, marine engineering machinery,
