Product Details:
Payment & Shipping Terms:
|
| Max Dia: | 4000mm | Melting Process: | LF+EF+VD |
|---|---|---|---|
| Material: | Steel | Max. Weight: | 60T |
| OEM: | Yes | Size: | As Drawing |
| High Light: | Carbon Steel Tube Sheet,Stainless Steel Tube Sheet,Heaet Exchanger Vessel Tube Sheet |
||

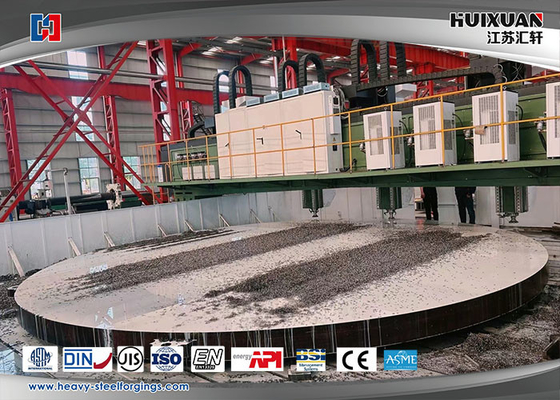

Stainless Steel Carbon Steel Tube Sheet for Heaet Exchanger Vessel
Products:
pressure vessel tube sheet, pressure-bearing equipment tube sheet, solid forged disc, forged tube sheet, tube sheet, highten tube sheet
Products reference:
| Material | 20MnMo,20MnMoNb,16MnD,Q345D |
|
Max. Dia. |
4000MM |
|
Apply for |
Tube sheet is used for sheel tube heat exchanger, boiler, pressure vessel, turbine, large-tonnage central air conditioning and so on. |
|
Melting process |
LF+EF+VD |
|
Process technology |
Forging+heat treatment+rough machining+finish machining |
|
Forging ratio |
≥3.5 |
|
Applicable standard |
ASTM,ASME,DIN,JIS,ISO,BS,API,EN |
|
Executive standard |
JB/GB/EN/DIN/JIS/ASME/ASTM/ISO |
|
Certification authority |
ISO9001:2008,BV,SGS,IST,UL.CTI |
|
Delivery terms |
Rough machining(N+T); finish machining(Q+T) |
|
Test equipment |
Spectrograph, UT device, tensile and compact test machine, metalloscope,external micrometer, bore dial indicator, hardness testing device and so on. |
|
Service |
Our service included the forging, process, heat treatment, finish machining, package, local logistics, customers clearance and maritime transport. We took the customer’s requirements as the principal thing, and pay attention on the products quality. |
Custom properties
|
Material elements |
C | Si | Mn | P | S | Cr | Ni | Mo | Nb |
| 16MnD | 0.13-0.20 | 0.17-0.37 | 1.20-1.60 | ≤0.030 | ≤0.030 | ≤0.30 | ≤0.30 | -- | |
| 20MnMo | 0.17-0.23 | 0.17-0.37 | 1.10-1.40 | ≤0.025 | ≤0.015 | ≤0.030 | ≤0.030 | 0.20-0.35 | |
| 20MnMoNb | 0.16-0.23 | 0.17-0.37 | 1.20-1.50 | ≤0.035 | ≤0.035 | -- | -- | 0.45-0.60 | 0.20-0.45 |
|
Mechainal properties |
Dia.(mm) |
TS/Rm(Mpa) |
YS/Rp0.2(Mpa) |
EL/A5(%) |
RA/Z(%) |
Type Of notch |
Impact energy |
HBW |
| 16MnD | Ø10 | 470-630 | ≥345 | ≥21 | -- | V | -20℃≥34 | -- |
| 20MnMo | Ø10 | ≥605 | ≥475 | ≥25 | -- | V | ≥180 | -- |
| 20MnMoNb | Ø10 | ≥635 | ≥490 | ≥15 | -- | U | ≥47 | 187-229HBS |
Process procedure:
Forging process flow quality control: Raw material steel ingot into warehouse(test the chemical content)Cutting Heating(Furnace temperture test) Heat treatment after forging(Furnace temperture test) Discharge the furnace(blank inspection) Machining Inspection(UT,MT,Visal diamention, hardness)QT Inspection(UT, mechanical properties, hardness, grain size)Finish machining Inspection (dimension)Packing and Marking(steel stamp, mark)Storage Shipment
Commerce clause
|
Max. weight |
60T |
|
MOQ |
1PC |
|
Delivery time |
30-35 days |
|
Package |
Poly wood case, wood pallet, steel frame support |
|
Delivery terms |
FOB;CIF;CFR；DDU； |
|
Payment terms |
T/T,LC |
|
Type of shipping |
By ocean, air |
Keywords:
Tube sheet, drill out a hole with diameter a little bigger than tube from a round steel sheet, penetrated the pipe through the hole, and then fixed by welding. This is normally used for chemical process vessel, such as sheel tube heat exchanger, pressure vessel, boiler, condenser, central air conditioning, evaporimeter and desalination that playing the part of supporting the immonilization lay tubes. The material of mental possess strong rigidness and great thermal conduction.
Features:
