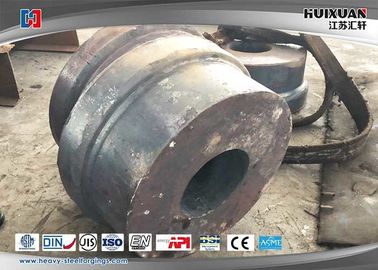

Ball Valve Bonnet Stainless Steel Forging A105 LF2 F304 304L F316 316L F51 F53

Ball Valve Bonnet Stainless Steel Forging A105 LF2 F304 304L F316 316L F51 F53
Ball Valve Bonnet Stainless Steel Forging A105 LF2 F304 304L F316 316L F51 F53 Ball Valve Bonnet Stainless Steel Forging A105 LF2 F304 304L F316 316L F51 F53 Ball Valve Bonnet Stainless Steel Forging A105 LF2 F304 304L F316 316L F51 F53 Ball Valve Bonnet Stainless Steel Forging A105 LF2 F304 304L F316 316L F51 F53

Large Image :  Ball Valve Bonnet Stainless Steel Forging A105 LF2 F304 304L F316 316L F51 F53

Product Details:
Place of Origin: China
Brand Name: HUIXUAN
Certification: ISO9001:2008,BV,SGS, IST, UL,CTI
Model Number: Bonnet
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: wood pallet,steel frame
Delivery Time: 30-50 days
Payment Terms: L/C, T/T
Supply Ability: 2000-4000 Ton/Month
Detailed Product Description
Material: A105 LF2 A105 LF2 F304 304L F316 316L F51 F53 Forging Equipment: 4T Or 8T Hammer
Melting Process: EF+LF+VD Forging Ratio: >4
Heat Treatment: N+T,Q+T Package: Frame
High Light:

forging stainless steel

,

super steel forgings



Ball Valve Bonnet Forging Stainless Steel A105 LF2 F304 304L F316 316L F51 F53




Products reference:



Material A105 LF2 A105 LF2 F304 304L F316 316L F51 F53
Forging equipment 4T,8T Hammer
Application


Ball valve bonnet is important parts of ball valve,widely used for petroleum refining,long distance transport pipes,water conservancy project,electricity,steel industry

Melting process EF BOF VIM
Process technology


Forging+rough machining+heat treatment+finish machining+packing+storage

Forging ratio >4
Applicable standard ASTM,ASME,DIN,JIS,ISO,BS,API,EN
Executive standard JB/GB/EN/DIN/JIS/ASME/ASTM/ISO
Certification authority ISO9001,PED TÜV
Delivery term


Each product is qualified,no defect of material processing,fully meet the mechanical property and use requirements.


Test equipment


Spectrograph,UT,MT test device,tensile and impact test device,metalloscope,outside micrometer,bore dial indicator,hardness test machine.

Service Our service included the forging, process, heat treatment, finish machining, package, local logistics, customers clearance and maritime transport. We took the customer’s requirements as the principal thing, and pay attention on the products quality.


Custom properties:

chemical composition C Si Mn P S Cr Ni Mo Cu V
A105 0.19-0.23 0.15-0.3 0.9-1.05 ≤0.035 ≤0.03 ≤0.1 ≤0.4 ≤0.12 ≤0.4 ≤0.05
LF2 0.19-0.23 0.15-0.3 0.9-1.05 ≤0.035 ≤0.03 ≤0.1 ≤0.4 ≤0.12 ≤0.4

≤0.03

304 ≤0.08 ≤1.00 ≤2.00 ≤0.045 ≤0.030 18.0–20.0 8.0-11.0
316 ≤0.08 ≤1.00 ≤2.00 ≤0.045 ≤0.030
16.0~18.0
10.0~14.0
2.00-3.00
F51 ≤0.03 ≤1.00 ≤2.00 ≤0.03 ≤0.02 21.0-23.0 4.5-6.5 2.5-3.5
F53 ≤0.03 ≤0.8 ≤1.2 ≤0.035 ≤0.02 24.0-26.0 6.0-8.0 3.0-5.0






Mechanical property


Dia.(mm)


TS/Rm(Mpa)


YS/Rp0.2(Mpa)


EL/A5(%)


RA/Z(%)


Type Of notch


Impact energy


HBW

A105 100*100*200 ≥485 ≥250 ≥22 ≥30 /   143-187
LF2 100*100*200 485-655 ≥250 ≥22 ≥30 V ≥27J(-29℃) 143-187


Commerce clause:


 Max weight 10T
MOQ 1PC
Delivery time 30-50 days
 Package  Steel frame
Delivery term FOB;CIF
Payment term T/T,LC
Transportation  vehicle,ocean,air

keywords:
Bonnet is the key part of ball valve,ball valve’s definition:open and close part(sphere) is driven by valve rod,and to rotate around axis of ball valve,also used for fluid’s adjustment and control,common material are A105 and LF2,normally after forging it need to be machined at lathe,CNC machining center,drilling machine,also need to be tested at tensile and impact machine

Advantage:
High-precision dimensional tolerance;
Excellent mechanical properties;

Produce different dimension based on customer’s requirements;

Advanced manufacture equipments and inspection devices;
Excellent technical personality;
Control the production procedure strictly;
Pay attention on the package protection;
Quality full service.
