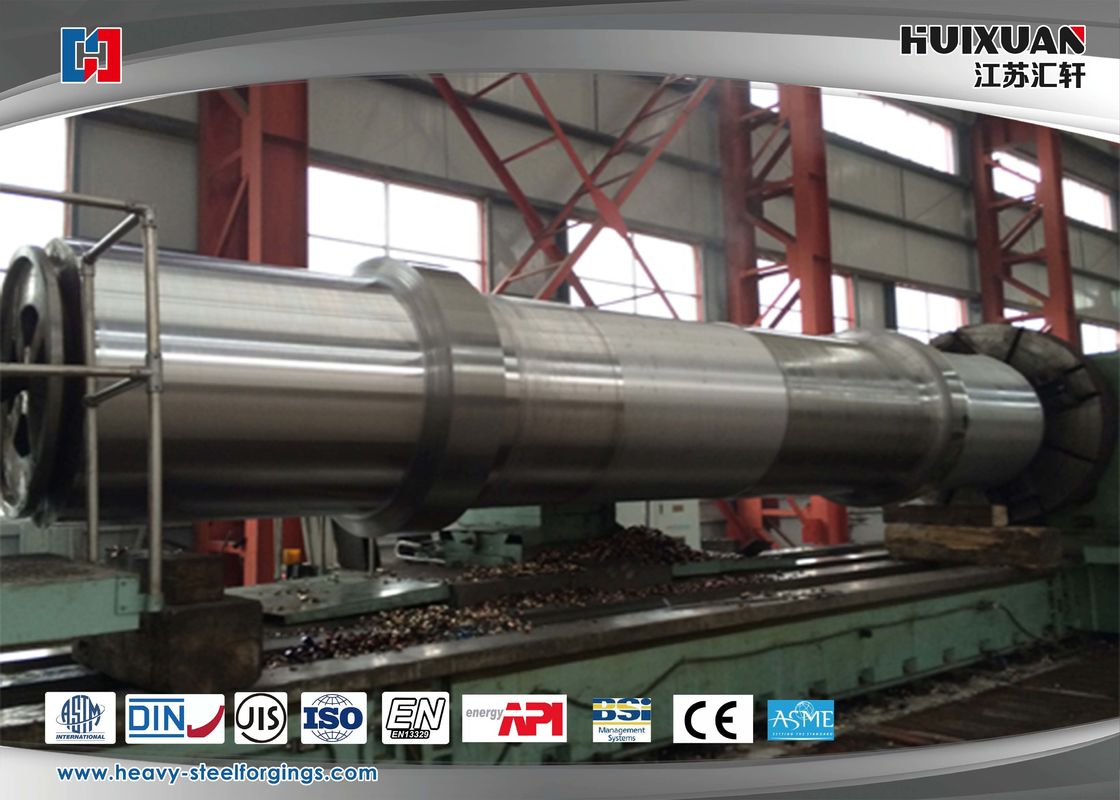

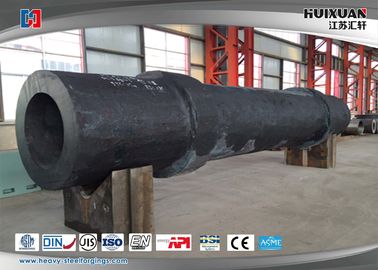

Open Die Polishing Forged Cylinder ASTM Heteromorphism Barrel Forging

Open Die Polishing Forged Cylinder ASTM Heteromorphism Barrel Forging
Open Die Polishing Forged Cylinder ASTM Heteromorphism Barrel Forging Open Die Polishing Forged Cylinder ASTM Heteromorphism Barrel Forging Open Die Polishing Forged Cylinder ASTM Heteromorphism Barrel Forging Open Die Polishing Forged Cylinder ASTM Heteromorphism Barrel Forging

Large Image :  Open Die Polishing Forged Cylinder ASTM Heteromorphism Barrel Forging

Product Details:
Place of Origin: China
Brand Name: HUIXUAN
Certification: ASTM,ASME,DIN,JIS,ISO,BS,API,EN
Model Number: 6000T
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Wooden pallet,Steel frame
Delivery Time: 30-50 days
Payment Terms: L/C, T/T
Supply Ability: 2000-5000Ton/month
Detailed Product Description
Forging Ratio: ≥4 Molding Style: Forging
Melting Proce: EF+LF+VD Application: Electrical Equipment
Material: Steel Surface Treatment: Polishing
Heating Treatment: N+T Q+T Certification: ASTM, SGS, CE
High Light:

barrel forge

,

pipe forging



Open Die Polishing Forged Cylinder ASTM Heteromorphism Barrel Forging





Products Description:

heteromorphism barrel,step barrel,open die barrel,double flange barrel.



Barrel forging that heteromorphism barrel with flange plate,open die forging is high requirements,flange plate is forged directly from barrel by mold,thus save raw material and time ,cost as well.



Products reference:

  • Type:4140,4330,18CrNiMo7-6,4340
  • Material:Carbon steel, alloy steel, stainless steel or other kind of material
  • Forging equipment:6000T open die hydropress
  • Application:Electrical equipment,metallurgy,,mine,pressure machine
  • Melting process:EF+LF+VD
  • Production process:Forging+heat treatment+rough machining+QT
  • Forging ratio:≥4
  • Delivery term:Rough machining(N+T);QT

Custom properties:

Material elements

C Si Mn P S Cr Ni Mo

Others

4140 0.38-0.43 0.15-0.35 0.60-0.90 ≤0.035 ≤0.040 0.80-1.10 -- 0.15-0.25 -
4330 0.28-0.33 0.10-0.35 0.85-1.15 ≤0.020 ≤0.020 0.80-1.10 1.10-1.40 0.35-0.55 -
18CrNiMo7-6 0.15-0.21 0.17-0.35 0.50-0.90 ≤0.025 ≤0.025 1.50-1.80 1.40-1.70 0.25-0.35
4340 0.38-0.43 0.15-0.35 0.60-0.80 ≤0.035 ≤0.040 0.70-0.90 1.65-2.00 0.20-0.30 -



Mechanial propety

Dia.(mm)

TS/Rm(Mpa)

YS/Rp0.2(Mpa)

EL/A5(%)

RA/Z(%)

Type Of notch

Impact energy

HBW

4140 Ø15 740~1000 450~850 ≥12 ≥25 V ≥40 ≤250HBS
4330 Ø10 ≥1000 ≥740 ≥12 ≥25 V ≥42 --
18CrNiMo7-6 Ø15 ≥980 ≥785 ≥9 ≥40 V ≥47 ≤269HBS
4340 Ø15 ≥980 ≥835 ≥12 ≥55 V ≥78 ≤179HBS

















Process procedure:

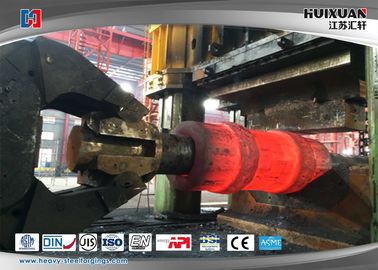

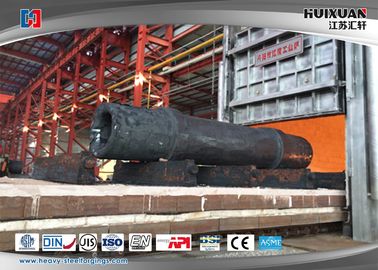

Forging process flow quality control: Raw material steel ingot into warehouse(test the chemical content) → Cutting→ Heating(Furnace temperture test) → Heat treatment after forging(Furnace temperture test) Discharge the furnace(blank inspection)→ Machining→ Inspection(UT,MT,Visal diamention, hardness)→ QT→ Inspection(UT, mechanical properties, hardness, grain size)→ Finish machining→ Inspection (dimension)→ Packing and Marking(steel stamp, mark)→ Storage Shipment



Quick Review:

Max length 5000MM
MOQ 1PC
Delivery time 30-50 Days
Package Wood pallet,steel frame
Delivery term FOB;CIF;CFR;DDU;
Payment term T/T,LC
Type of shipping

By ocean,air



Why choose HUIXUAN?

  • HUIXUAN is a directly professional manufacturer with over 10 years experiences specialized in producing custom forging machining parts.
  • The company is able to meet your high quality standard, performs 100% QC test, certification:ISO9001-2008.
  • HUIXUAN specializes in all kinds of material , surface treatment and heating treatment. Fast & flexible turnaroun,100% on-time delivery.
  • HUIXUAN only takes reasonable profit , competitive price will be our greatest advantage.

Our service:

Our service included the forging, process, heat treatment, finish machining, package, local logistics, customers clearance and maritime transport. We took the customer’s requirements as the principal thing, and pay attention on the products quality.



Advantage

  1. High-precision dimensional tolerance;
  2. Excellent mechanical properties;
  3. Produce different dimension based on customer’s requirements;
  4. Advanced manufacture equipments and inspection devices;
  5. Excellent technical personality;
  6. Control the production procedure strictly;
  7. Pay attention on the package protection;
  8. Quality full service.
