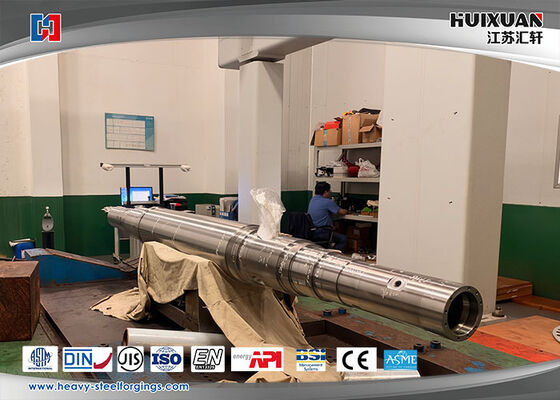

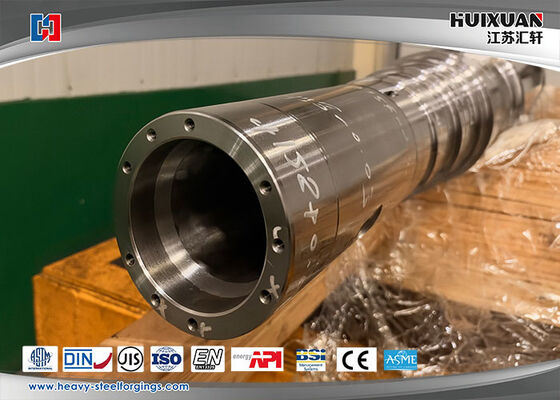

Forged Motor Shaft
High-Strength Forged Motor Shafts for Industrial Applications
Our Forged Motor Shafts are engineered for industrial motors, power transmission equipment, generators, pumps, compressors, and other heavy-duty rotating machinery where strength, dimensional accuracy, and long-term reliability are critical.
Manufactured through a controlled forging, heat treatment, machining, and inspection process, our motor shafts are designed to withstand high torque, continuous rotation, mechanical loads, and demanding operating conditions.
As a professional forging manufacturer, JIANGSU HUI XUAN NEW ENERGY EQUIPMENT CO., LTD. focuses on the complete manufacturing process from forged blanks to precision-machined shafts.
Key Product Features
1. Forged Construction
Forging provides an effective manufacturing route for load-bearing shaft components. Depending on the shaft size, geometry, material, and production requirements, suitable forging methods can be selected to achieve the required shape and material properties.
The forging process is carefully controlled to obtain a stable internal structure and reliable mechanical performance.
2. Precision Machining
After forging and heat treatment, the shaft is precision machined according to the engineering drawing.
Typical machining operations include:
Critical areas such as bearing journals, shoulders, mounting surfaces, and shaft ends can be precision machined according to the specified dimensional and geometric tolerances.
3. Controlled Heat Treatment
Heat treatment is an important part of forged motor shaft manufacturing because the required mechanical properties depend on the material grade, shaft geometry, and operating conditions.
Depending on the specification, available treatment routes may include:
The appropriate process is determined according to the material specification and final application rather than using a single standard process for every shaft.
4. Material Control
Motor shafts can be manufactured from different grades of carbon steel, alloy steel, or stainless steel according to the technical requirements.
Common material selections for shaft applications may include:
Material selection can be matched to requirements for strength, toughness, wear resistance, corrosion resistance, and operating environment.
Chemical composition and mechanical properties can be verified according to the applicable material standard and project requirements.

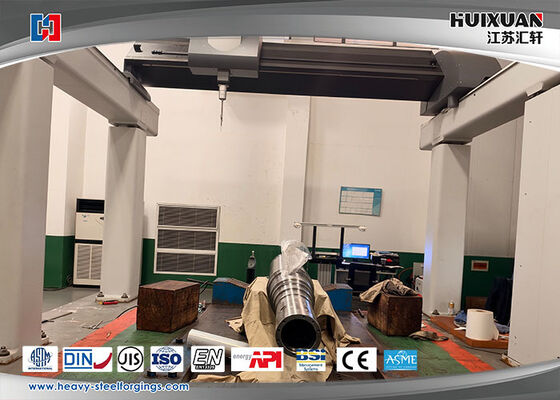

Quality Control
For a motor shaft, dimensional accuracy alone is not sufficient. Shaft performance can also depend on straightness, concentricity, runout, surface condition, hardness, and the relationship between critical machining features.
Our quality-control process can include:
-
Raw material inspection
-
Chemical composition verification
-
Forging process control
-
Heat-treatment control
-
Hardness testing
-
Dimensional inspection
-
Surface inspection
-
Ultrasonic testing when required
-
Magnetic particle testing when specified
-
Final machining inspection
-
Material and inspection documentation
This process helps maintain consistency from the forged blank through the finished motor shaft.
Customized Forged Motor Shafts
We manufacture motor shafts according to customer drawings, technical specifications, material requirements, and application conditions.
Customized features may include:
For complex shaft components, our engineering team evaluates the relationship between the finished dimensions and the forging blank, machining allowance, heat treatment, datum selection, and final machining requirements.
Manufacturing Process
A typical manufacturing route is:
Material Selection → Cutting → Heating → Forging → Heat Treatment → Rough Machining → Precision Machining → Inspection → Surface Protection → Packing
The exact process is adjusted according to the material, shaft dimensions, geometry, tolerances, heat-treatment requirements, and inspection specifications.
Forged shafts commonly require final machining after heat treatment to achieve the required dimensional accuracy and surface finish.
Applications
Forged motor shafts can be used in:
-
Industrial electric motors
-
Generators
-
Power transmission systems
-
Pumps
-
Compressors
-
Mining equipment
-
Heavy machinery
-
Energy equipment
-
Marine equipment
-
Gear-driven machinery
-
Customized rotating equipment
Why Choose Our Forged Motor Shafts?
Forging Capability
We focus on forged components and can develop the forging route according to the finished shaft design.
Precision Machining
We combine forging with machining capabilities to reduce the need for multiple suppliers and maintain better process coordination.
Quality Control
Material, forging, heat treatment, machining, and final inspection can be controlled throughout the manufacturing process.
Cost Control
The manufacturing route can be optimized around material utilization, machining allowance, production volume, and processing requirements to achieve a practical balance between quality and manufacturing cost.
OEM Manufacturing
We support customized motor shafts manufactured according to drawings, specifications, and technical requirements.
Get a Customized Forged Motor Shaft
If you are looking for a reliable forged motor shaft manufacturer, send us your shaft drawing, material specification, dimensions, heat-treatment requirements, tolerances, and required quantity.
Our engineering team can review the design and recommend a suitable forging + heat treatment + precision machining manufacturing route for your application.
Products reference:
| Material |
50Mn,DG20Mn,25Cr2Ni4MoV,34CrNiMo6 |
|
Max weight
|
50T |
| Application |
Connection shaft of between main motor and reducer,main motor and gear seat,main motor and universal spindle
|
|
Melting process
|
EF+LF+VD |
|
Production process
|
Forging+heat treatment+rough machining+finish machining
|
|
Forging ratio
|
≥3.5
|
|
Applicable standard
|
ASTM,ASME,DIN,JIS,ISO,BS,API,EN |
|
Executive standard
|
JB/GB/EN/DIN/JIS/ASME/ASTM/ISO |
|
Certification authority
|
ABS,DNV,BV,GL,KR,CCS,LR,NK,RINA,RS. |
|
Delivery terms
|
Rough machining(N+T);finish machining(Q+T)
|
|
Test machine
|
Spectrograph,UT device,tensile and compact test machine,metalloscope,outside micrometer,bore dial indicator,hardness test machine
|
|
Service
|
Our service included the forging, process, heat treatment, finish machining, package, local logistics, customers clearance and maritime transport. We took the customer’s requirements as the principal thing, and pay attention on the products quality.
|
Process procedure:
Forging process flow quality control:
- Raw material steel ingot into warehouse(test the chemical content)
- Cutting→ Heating(Furnace temperture test)
- Heat treatment after forging(Furnace temperture test) Discharge the furnace(blank inspection)
- Machining→ Inspection(UT,MT,Visal diamention, hardness)
- QT→ Inspection(UT, mechanical properties, hardness, grain size)
- Finish machining→ Inspection (dimension)
- Packing and Marking(steel stamp, mark)→ Storage Shipment
Custom properties
|
Material elements
|
C |
Si |
Mn |
P |
S |
Cr |
Ni |
Mo |
V |
| 50Mn |
0.48-0.56 |
0.17-0.37 |
0.70-1.00 |
≤0.035 |
≤0.035 |
≤0.25 |
≤0.30 |
-- |
- |
| DG20Mn |
0.17-0.24 |
0.17-0.34 |
0.70-1.00 |
≤0.035 |
≤0.035 |
≤0.25 |
≤0.25 |
-- |
|
| 25Cr2Ni4MoV |
≤0.25 |
≤0.23 |
≤0.53 |
≤0.006 |
≤0.004 |
≥1.62 |
≥3.75 |
≥0.33 |
≥0.09 |
| 34CrNiMo6 |
0.30-0.38 |
≤0.040 |
0.50-0.80 |
≤0.035 |
≤0.035 |
1.30-1.70 |
1.30-1.70 |
0.15-0.30 |
|
|
Mechanical property
|
Dia.(mm)
|
TS/Rm(Mpa)
|
YS/Rp0.2(Mpa)
|
EL/A5(%)
|
RA/Z(%)
|
Type Of notch
|
Impact energy
|
HBW
|
| 50Mn |
Ø25 |
≥645 |
≥390 |
≥13 |
≥40 |
V |
≥31 |
≤255HBS |
| DG20Mn |
Ø25 |
≥450 |
≥275 |
≥24 |
≥50 |
|
|
|
| 34CrNiMo6 |
Ø15 |
750-900 |
450-600 |
≥13 |
≥55 |
V |
-40℃≥20 |
≤269HBS |
Commerce clause
| MOQ |
1PC |
| Delivery time |
30-60 Days |
| Package |
Plywood pallet,steel frame |
| Delivery terms |
FOB;CIF;CFR；DDU； |
| Payment terms |
T/T,LC |
| Type of shipping |
By ocean,air
|
Advantage
- High-precision dimensional tolerance;
- Excellent mechanical properties;
- Produce different dimension based on customer’s requirements;
- Advanced manufacture equipments and inspection devices;
- Excellent technical personality;
- Control the production procedure strictly;
- Pay attention on the package protection;
- Quality full service.
