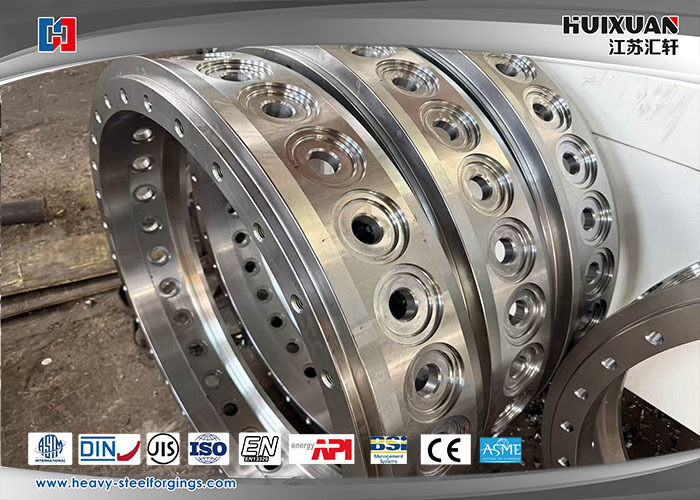

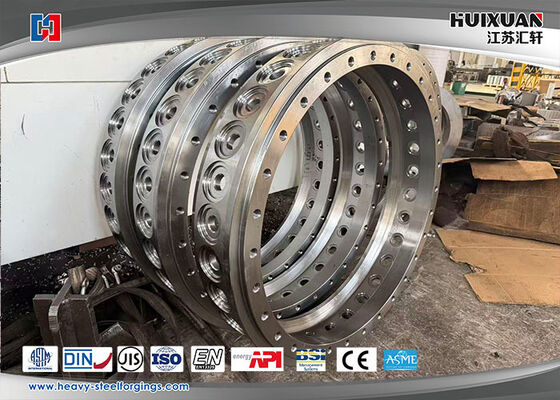

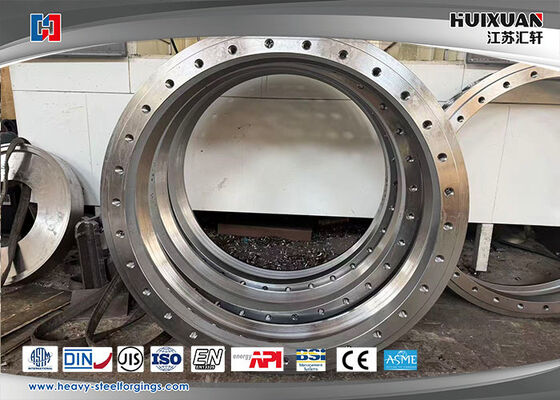

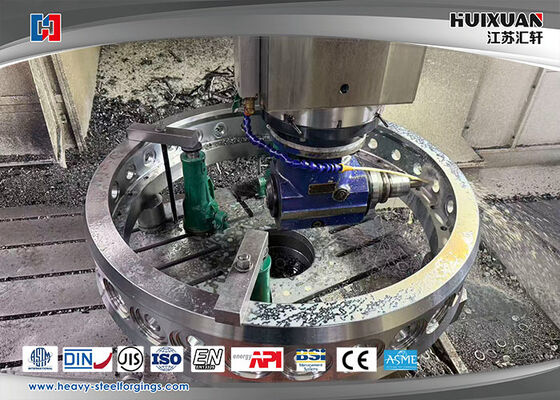

Motor Bearing Ring Forging Heat Treatment Alloy Steel

Motor Bearing Ring Forging Heat Treatment Alloy Steel
Motor Bearing Ring Forging Heat Treatment Alloy Steel Motor Bearing Ring Forging Heat Treatment Alloy Steel Motor Bearing Ring Forging Heat Treatment Alloy Steel Motor Bearing Ring Forging Heat Treatment Alloy Steel

Large Image :  Motor Bearing Ring Forging Heat Treatment Alloy Steel

Product Details:
Place of Origin: China
Brand Name: HUIXUAN
Certification: ASTM，ASME，DIN，JIS，ISO，BS，API，EN
Model Number: 4340，20CrMnMo,34CrNiMo7-6,18CrNiMo7-6
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Plywood case,Wooden pallet,Steel frame
Delivery Time: 30-50Days
Payment Terms: L/C, T/T
Supply Ability: 3000-5000Ton/month
Contact Now
Detailed Product Description
Forging Ratio: ≥3.5 MOQ: 1PC
Molding Style: Forging Max Weight: 30T
Delivery Time: 30-50Days Melting Proce: EF+LF+VD
Material: Steel Heating Treatment: N+T Q+T

Motor Bearing Ring Forging Heat Treatment Alloy Steel





Products reference:

Material 4340,20CrMnMo,34CrNiMo7-6,18CrNiMo7-6
Forging equipment 5000MM numerical control ring rolling machine
Application

Motor Bearing Ring
Melting process EF+LF+VD
Production process

Forging+heat treatment+rough machinning+QT+hobbing+gear grinding+finish machining
Forging ratio

≥3.5
Applicable standard ASTM,ASME,DIN,JIS,ISO,BS,API,EN
Executive standard JB/GB/EN/DIN/JIS/ASME/ASTM/ISO
Certification authority ISO,BV,SGS, IST, UL,CTI
Delivery terms

Rough machining(N+T);finish machining(Q+T),nitriding quenching

Test equipment

Spectrograph,UT device,tensile and compact test machine,metalloscope,outside micrometer,bore dial indicator,trilinear coordinatre measuring machine,hardness test machine
Service Our service included the forging, process, heat treatment, finish machining, package, local logistics, customers clearance and maritime transport. We took the customer’s requirements as the principal thing, and pay attention on the products quality.



Custom properties

Material elements C Si Mn P S Cr Ni Mo Others
20CrMnMo 0.17-0.23 0.17-0.37 0.90-1.20 0.035 0.035 1.10-1.40 0.30 0.20-0.30 0.17-0.23
34CrNiMo6 0.30-0.38 ≤0.040 0.50-0.80 ≤0.035 ≤0.035 1.30-1.70 1.30-1.70 0.15-0.30
18CrNiMo7-6 0.15-0.21 0.17-0.35 0.50-0.90 ≤0.025 ≤0.025 1.50-1.80 1.40-1.70 0.25-0.35
4340 0.38-0.43 0.15-0.35 0.60-0.80 ≤0.035 ≤0.040 0.70-0.90 1.65-2.00 0.20-0.30 -



Mechanical property

Dia.(mm)

TS/Rm(Mpa)

YS/Rp0.2(Mpa)

EL/A5(%)

RA/Z(%)

Type Of notch

Impact energy

HBW
20CrMnMo Ø15 ≥1180 ≥885 ≥10 ≥45 V ≥55 ≤217HBS
34CrNiMo6 Ø15 750-900 450-600 ≥13 ≥55 V -40℃≥20 ≤269HBS
18CrNiMo7-6 Ø15 ≥980 ≥785 ≥9 ≥40 V ≥47 ≤269HBS
4340 Ø15 ≥980 ≥835 ≥12 ≥55 V ≥78 ≤179HBS


Process procedure:

Forging process flow quality control:

  1. Raw material steel ingot into warehouse(test the chemical content)
  2. Cutting→ Heating(Furnace temperture test)
  3. Heat treatment after forging(Furnace temperture test) Discharge the furnace(blank inspection)
  4. Machining→ Inspection(UT,MT,Visal diamention, hardness)
  5. QT→ Inspection(UT, mechanical properties, hardness, grain size)
  6. Finish machining→ Inspection (dimension)
  7. Packing and Marking(steel stamp, mark)→ Storage Shipment

Commerce clause

Max weight 30T
MOQ 1PC
Delivery time 30-50Days
Package Plywood case,wooden pallet,steel frame
Delivery term FOB;CIF;CFR；DDU；
Payment term T/T,LC
Type of shipping

By ocean,air



Advantage

  1. High-precision dimensional tolerance;
  2. Excellent mechanical properties;
  3. Produce different dimension based on customer’s requirements;
  4. Advanced manufacture equipments and inspection devices;
  5. Excellent technical personality;
  6. Control the production procedure strictly;
  7. Pay attention on the package protection;
  8. Quality full service.

Motor Bearing Ring Forging Heat Treatment Alloy Steel 0Motor Bearing Ring Forging Heat Treatment Alloy Steel 1
