Ship Inspection Crankshaft Forging Custom With Heavy Diesel Engine

China Ship Inspection Crankshaft Forging Custom With Heavy Diesel Engine supplier
Ship Inspection Crankshaft Forging Custom With Heavy Diesel Engine supplier Ship Inspection Crankshaft Forging Custom With Heavy Diesel Engine supplier Ship Inspection Crankshaft Forging Custom With Heavy Diesel Engine supplier Ship Inspection Crankshaft Forging Custom With Heavy Diesel Engine supplier

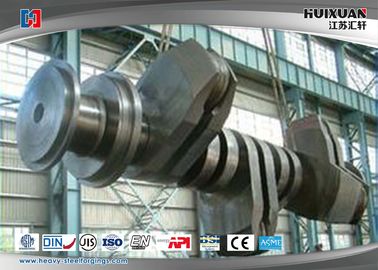

Large Image :  Ship Inspection Crankshaft Forging Custom With Heavy Diesel Engine

Product Details:

Place of Origin: China
Brand Name: HUIXUAN
Certification: ABS,DNV,BV,GL,KR,CCS,LR,NK,RINA,RS
Model Number: 50T

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: wood pallet,steel frame
Delivery Time: 30-60 days
Payment Terms: L/C, T/T
Supply Ability: 2000-4000 Ton/Month
Contact Now
Detailed Product Description
Application: Crankshaft Max Weight: 50T
Melting Process: EF+LF+VD Forging Ratio: ≥3.5
Heat Treatment: N+T Q+T Size: As Drawing



Ship Inspection Crankshaft Forging Custom With Heavy Diesel Engine





Products reference:

Material 50Mn,DG20Mn,25Cr2Ni4MoV,34CrNiMo6
Max weight 50T
Application



Crankshaft is most important parts of engine,it take forces from connecting rod, transfer into torque and output to drive others part of engine

Melting process EF+LF+VD
Production process



Forging+heat treatment+rough machining+finish machining

Forging ratio



≥3.5

Applicable standard ASTM,ASME,DIN,JIS,ISO,BS,API,EN
Executive standard JB/GB/EN/DIN/JIS/ASME/ASTM/ISO



Certification authority

ABS,DNV,BV,GL,KR,CCS,LR,NK,RINA,RS



Delivery term



Rough machining(N+T);finish machining(Q+T)



Test equipment



Spectrograph,UT device ,tensile and compact test machine,metalloscope,outside micrometer,bore dial indicator,hardness test machine

Service Our service included the forging, process, heat treatment, finish machining, package, local logistics, customers clearance and maritime transport. We took the customer’s requirements as the principal thing, and pay attention on the products quality.



Custom properties



Material elements

C Si Mn P S Cr Ni Mo V
50Mn 0.48-0.56 0.17-0.37 0.70-1.00 ≤0.035 ≤0.035 ≤0.25 ≤0.30 -- -
DG20Mn 0.17-0.24 0.17-0.34 0.70-1.00 ≤0.035 ≤0.035 ≤0.25 ≤0.25 --
25Cr2Ni4MoV ≤0.25 ≤0.23 ≤0.53 ≤0.006 ≤0.004 ≥1.62 ≥3.75 ≥0.33 ≥0.09
34CrNiMo6 0.30-0.38 ≤0.040 0.50-0.80 ≤0.035 ≤0.035 1.30-1.70 1.30-1.70 0.15-0.30





Mechanical property



Dia.(mm)



TS/Rm(Mpa)



YS/Rp0.2(Mpa)



EL/A5(%)



RA/Z(%)



Type Of notch



Impact energy



HBW

50Mn Ø25 ≥645 ≥390 ≥13 ≥40 V ≥31 ≤255HBS
DG20Mn Ø25 ≥450 ≥275 ≥24 ≥50
34CrNiMo6 Ø15 750-900 450-600 ≥13 ≥55 V -40℃≥20 ≤269HBS


Process procedure:

Forging process flow quality control: Raw material steel ingot into warehouse(test the chemical content) → Cutting→ Heating(Furnace temperture test) → Heat treatment after forging(Furnace temperture test) Discharge the furnace(blank inspection)→ Machining→ Inspection(UT,MT,Visal diamention, hardness)→ QT→ Inspection(UT, mechanical properties, hardness, grain size)→ Finish machining→ Inspection (dimension)→ Packing and Marking(steel stamp, mark)→ Storage Shipment



Commerce clause

MOQ 1PC
Delivery time 30-60 days
Package wood pallet,steel frame
Delivery term FOB;CIF;CFR;DDU;
Payment term T/T,LC
Type of shipping



By ocean,air



Keywords

Marine diesel engine crankshaft,crankshaft type ship inspection forging,crankshaft classification society certification,can be approved by big ten classification society.



High-precision dimensional tolerance;Excellent mechanical properties;Produce different dimension based on customer’s requirements;Advanced manufacture equipments and inspection devices;Excellent technical personality;Control the production procedure strictly;Pay attention on the package protection;

Quality full service.

Ship Inspection Crankshaft Forging Custom With Heavy Diesel Engine
